Will My Wheels Work On These Hubs?

MillerBuilt Full Floater Kits come equipped with either C7 Corvette or 6th Gen Camaro Hub Bearing Units. Determining which Hub Bearing Unit your kit will ultimately come with is 100% dependent on the actual brake kit application you intend on running.

  • C5/C6/C7 Corvette brake kit applications (OEM or Aftermarket) will receive a C7 Corvette Hub Bearing Unit within the MillerBuilt Full Floater Kit.
  • 5th/6th Gen Camaro brake kit applications (OEM or Aftermarket) will receive a 6th Gen Camaro Hub Bearing Unit within the MillerBuilt Full Floater Kit.
The below provided information is important for you to consider when determining wheel fitment compatibility & proper wheel stud length for your specific application. Once you account for both rotor drum thickness, and wheel center thicknesses you will be able to determine how much usable wheel stud thread will be remaining for the lug nut of your liking.

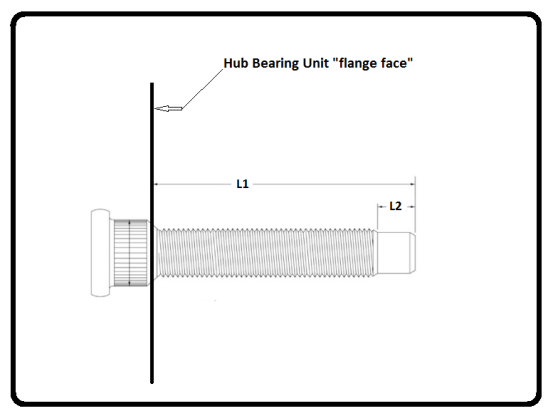

Wheel Stud Diagram

The below OEM Hub Bearing Units come standard within your MillerBuilt Full Floater Kit. The optional wheel studs are just that “optional” and are NOT included unless specified. All the below listed optional wheel studs will be billed in addition to the Full Floater Kit prices and sold in sets of (10) to complete both rear Hub Bearing Units.

C7 Corvette OEM Hub Bearing Unit:

  • Bolt Circle Diameter – 5 on 4.75
  • Wheel Pilot Diameter – 2.76 (70.12mm)
  • Wheel Studs Size – M12-1.5  (L1=1.630 L2=.330)

Optional Wheel Studs for C7 Corvette Hub Bearing Unit:

  • Option 1 – ARP 1/2-20  (L1=2.665 L2=.300)
  • Option 2 – ARP 1/2-20  (L1=2.225 L2=.300)
  • Option 3 – ARP M12-1.5  (L1=2.800 L2=none)
  • Option 4 – ARP M12-1.5  (L1=2.05 L2=none)

6th Gen Camaro OEM Hub Bearing Unit:

  • Bolt Circle Diameter – 5 on 4.724 (120mm)
  • Wheel Pilot Diameter – 2.631 (66.83mm)
  • Wheel Studs Size – M14-1.5  (L1=1.830 L2=.530)

Optional Wheel Studs for 6th Gen Camaro Hub Bearing Unit:

  • Option 1 – ARP 1/2-20  (L1=2.665 L2=.300)
  • Option 2 – ARP M14-1.5  (L1=2.750 L2=.435)
  • Option 3 – ARP M14-1.5  (L1=2.250 L2=.435)
